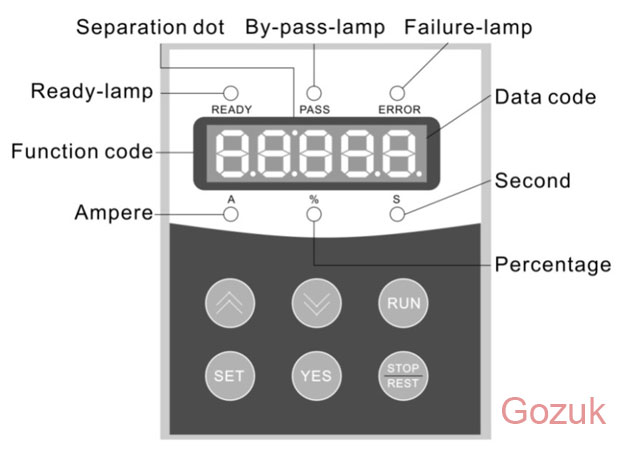

Soft starter Control panel

Gozuk soft starters have five working states: Ready, Run, Fault, Start and Stop. The control panel will show the current value of the motor in start/stop, and it will show the set and help menu at other states.



Soft starter control panel operation
Open state: Please do not press the "run" key until the ready-lamp lights and show "READY"

Time-delay state: When the ready-lamp or fault-lamp is shining, it means it is interval time delay; and when the display screen shows "dEXXX" and count down, that means staring time-delay.

"RUN" or "STOP" key: In the process of staring, the panel shows "XXXX" that is the value of start-up current. At this time only "STOP" key is valid. And the lamps of Ready, Run and Error are all dark, and you can't come into the "set" and "help menu" state. While, in the process of stopping, the panel shows "XXXX" that is the value of motor current. At this time, only "RUN" key is valid, and the lamps of Ready, Run and Error are all dark, and you can't come into the "set" and "help menu" state. The "STOP" key also has reset function.

"SET" key: Press "SET" key to enter the Set Menu and panel shows PX: XXX. Please press "Set" key again and Colon is shining, then you can change the parameters after the colon you need. If you want to save the soft starter changed parameters, please press "YES" key. If you do not want to save, please press the "SET" key until the colon stops shining, then the parameters recover. Having finished the above operation, please press the "YES" key to exit or press "Stop" key to exit directly.

"YES" key: Under non-Set State, press the "YES" key to enter Help Menu and the panel shows HX: XXX. When you finish reading the Help Menu, you can press "YES" key again or "Stop" key to exit. Under Set State, This key can save parameters, and press again can exit set state.

"Up" and "Down" key: In Set Menu, when the colon is not shining, you can press these two keys to select the Function Code; When colon is shining, you can press these two keys to change the soft starter parameters. It is the same as the operation in Help Menu. When the Pass-by -lamp is lighting and the display Screen shows AXXX which means the operation current value of motor, now you can press "Up" or "Down" key and the screen will display PXXXX or HXXXX. (P XXXX means the apparent power of motor; HXXXX means the over-load heat balance coefficient, if this value is more than 100%, the screen shows"Err08", that means soft starter is at state of over-load protection. )

Note:
1. only the operation is valid, soft starter will be with the voice when pressing the key. Otherwise, the operation is invalid.
2. The control panel uses the super anti-interference material, so keypad cable can be external connection 3 meters away.
3. Using "3-wire connection", the external start and stop button are same function as keypad "RUN" and "STOP".
